Videotron P5 Outdoor Spesifikasi LED Display Ultimate Jasa Instalasi

Posted by purnosidi
on 28/02/2017

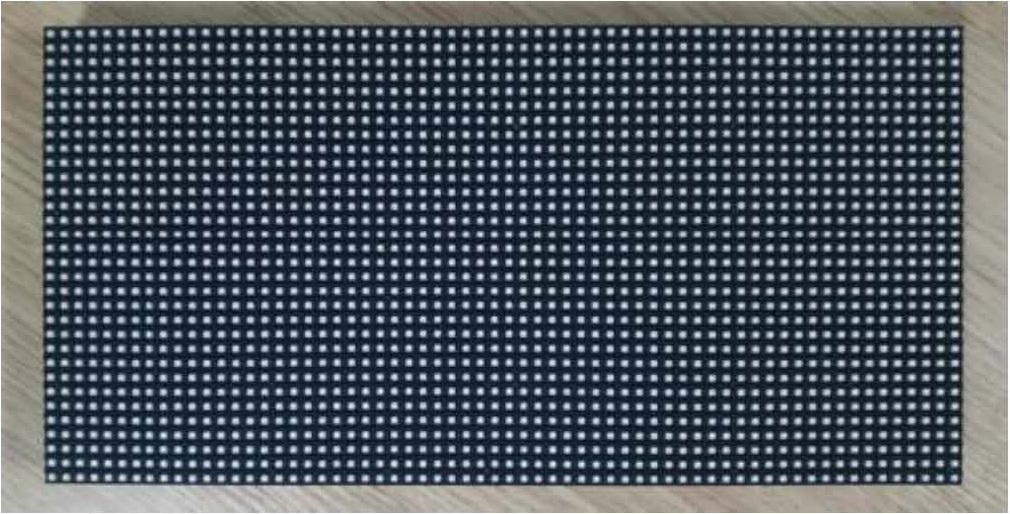

Videotron P5 Outdoor Spesifikasi Led Display Ultimate

Videotron P5 Outdoor Spesifikasi LED Display Ultimate Jasa Instalasi di Karawang. Products Function introduction:

  1. High intensity and can be adjusted, so can meet the request of the costumers according the application environment
  2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
  3. To picture and character, have clear, exquisite and real display effect
  4. Big viewing angle to 160 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
  5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair

Videotron P5 Outdoor Spesifikasi Led Display Ultimate

Videotron P5 Outdoor Spesifikasi Led Display Ultimate Products Advantages :

  1. Price advantage : we have the best competitive price at the market; also have the same even better quality
  2. Performance Advantage : Best Equality, high consistency, Big viewing angle, can repair each led lamps
  3. Quality advantage : from material to finished products, from design to produce, we control all steps that are the quarantee of the quality and reability
  4. Service advantage : Better service at same situation, better cooperation at same service

Products application area:

  1. Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, and so make the whole display
  2. Usually apply for physical sport, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, etc

Detail Specific Technical

Technical Detail of Videotron P5 Outdoor Spesifikasi LED Display Ultimate:

  • Pixel Pitch: 5 mm
  • Pixel Density: 4000 dots/sqm
  • Color Configuration: 1R1G1B
  • Led Package: SMD2727
  • Module Size: 320 mm x 160 mm
  • Module Resolution: 32 dots x 16 dots
  • Drive Mode: 1/8 Scan, Constant Current
  • Led Chip: Kinglight
  • Drive IC: MBI or JXI or Chipone or others
  • Power Supply: G-energy, Chuanglian, Meanwell
  • Module Weight: 0.65KG
  • Module Thickness: 2.8CM
  • Interface: HUB75
  • Brightness: Over 6500cd/sqm
  • Best Viewing Distance: 5m-100m
  • Viewing Angle: H: 160°; V:160°
  • Refresh Rate: 1800HZ
  • Frame Rate: 120frame/sec
  • Grey Scale: 16.7M colors(Synchronized)
  • Color Temperature: R.G.B brightness 256 level adjustable
  • Power Input: AC110V/ 220V ±10, 50HZ
  • Max Power Consumption: 1100W/sqm
  • Ave. Power Consumption: 500W/sqm
  • Storage Temperature: -35~+85 degree
  • Working Temperature: -20~+65 degree
  • Blind Spot Rate: <1/10000
  • MTBF: >10,000 Hours
  • Life Span: >100,000 Hours
  • Waterproof: IP65
  • Operating Humidity: 10%~95%
  • Control System: LINSN, NOVA, XIXUN, HD
  • Control PC: With DVI Graphic card
  • Operating System: Win 98, Win2000, XP, Win7 ,Win8.etc
  • Video Signal Mode: RF,S-Video, RGB, RGBHV, YUV, YC etc
  • Certificate: CE, RoHS
